产品中心PRODUCT
Silicone oven
Product number:
Silicone oven
Scope of application:
Silicone oven is used for the secondary vulcanization of silicone tableware, baby nipple pipette, medical silicone tube, sealing ring, etc. The baked product has passed the test standard of volatile molecules in European (French standard) LFGB/FDA.

Xinhua Silicone Oven:

Baked products have passed the European (standard) LFGB / FDA detection standards for volatile molecules.

The movable drawer type air panel is convenient for the operator to clean the dust and reduce the secondary pollution of the product.

It adopts high temperature resistant active sealing strip and can be easily replaced without pulling nails.

Inner box material: inner box is made of SUS201# stainless steel plate, surrounded by argon welding and sealing processing (anti-pollution); outer box material: SS41# steel plate is anti-rust after electrostatic high-temperature powder coating, wrinkle white;

Insulation material: high-grade insulation cotton, insulation thickness 100mm plus air insulation;

Machine structure: 180 degrees left and right, the electric box is placed on the right side for easy maintenance and cleaning;

Air supply system:

The motor is transported from the top, the hot air is blown to the product from the top to the side, the jet flow design, the circulating air supply, and the uniformity is good;

Long-axis oven-specific motor 1 set (Taiwan Shengjie) and powerful multi-wing galvanized wind wheel;

The strong-intensity and strong-discharge mode adopts stepless speed regulation, LED panel display and convenient operation;



Specification typeSelected itemsProduct VideoDesign according to customer requirements

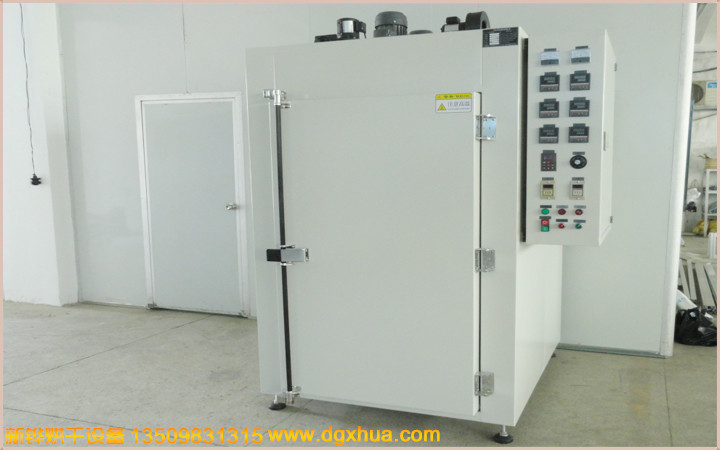

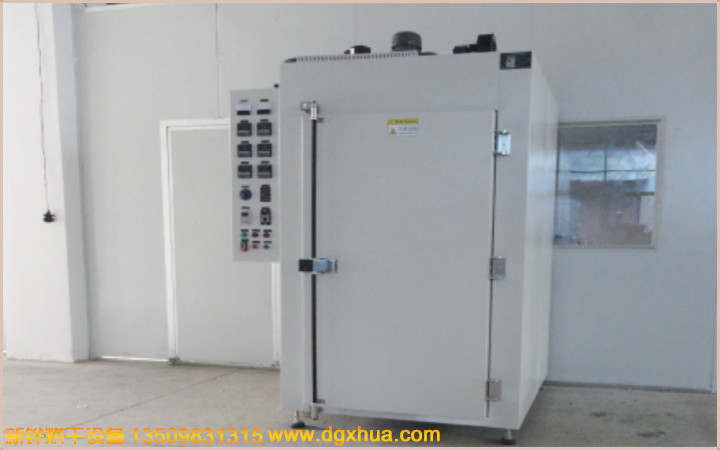

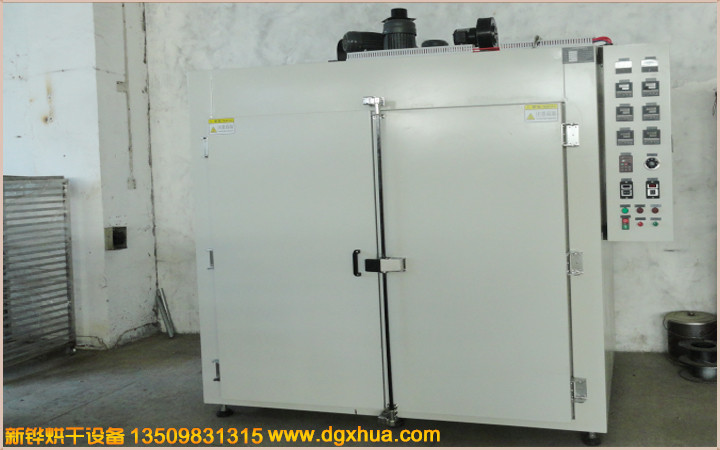

  Silicone oven single door / double door two

  Single door inner box size: width 850 * depth 1200 * height 1500mm

  Double door inner box size: width 1650* depth 1200* height 1500mm


Product introduction
Unique performanceCustomer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend


Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control tableJapan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controllerJapan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorderImported multi-channel paper recorder
Import PARTLOW chart temperature recorderImported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 pointsIR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inchProface
MitsubishiSiemens
Industrial computer Ethernet remote monitoring
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend

Single side air supply typeDouble-sided air supply typeDouble-sided air supply explosion-proofHeat radiation rising type
Four-sided radiation typeThermal radiation typeHot air radiation typeHot air radiation type

Tray, cart matching project

Tray form




Punching plateScreen trayGrid disk

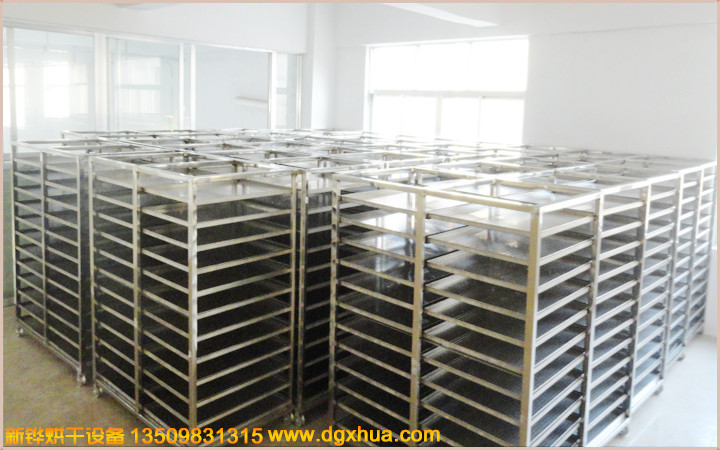

Activity cart




grillOven cart + trayChild cart
