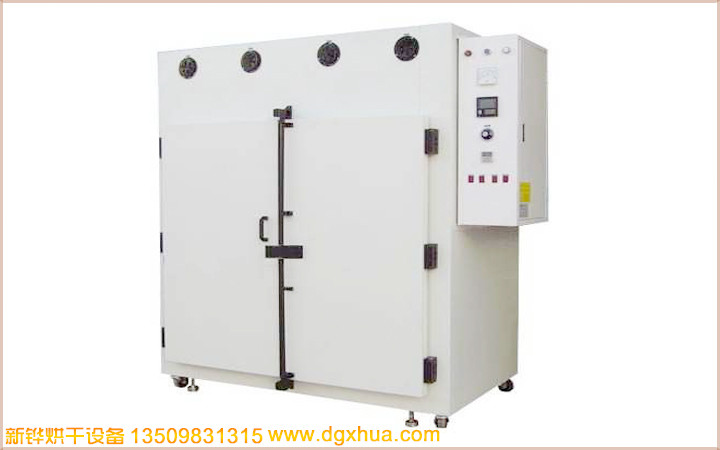

Machine Name: Cleanroom Oven Model: XHMOL-4S

Power: AC380 50HZ 10.5KW

Machine size: inner box size: W800×D600×H1000mm

Outer box size: W1100×D1050×H 1690+foot cup 110mm

Temperature Control System

Temperature range: room temperature ~ 200 ° C, commonly used 180 ° C, room temperature rose to 200 ° C for about 30 minutes;

Temperature controller: temperature controller, button setting, LED display, PID automatic calculation, with SSR output control, K-type thermocouple detection temperature;

Structural design

Inner box material: 201# mirror panel stainless steel, surrounded by argon welding and sealing processing (anti-pollution);

Outer box material: SS41# steel plate is rust-proof, electrostatic high-temperature powder coating, wrinkle white;

Insulation material: high-grade insulation cotton, insulation thickness 100mm plus air insulation;

Machine structure: 180 degree single open door, the door buckle is the ball blind buckle way;

Air supply system

The motor is transported horizontally from the top to the front, and the jet is designed to circulate air. The uniformity is good;

Efficient filter installed inside the oven; dust-free class Class1000 (same class workshop);

Long-axis oven-specific motor 1 set (Supreme) and powerful multi-wing galvanized wind wheel;

Dust-proof requirements: When opening the door, the fan keeps running and maintains the positive pressure inside the furnace;
