Football tunnel furnace, football drying tunnel furnace, Dongguan Xinhua Machinery Equipment Co., Ltd.

Temperature control system: Each section of the furnace is divided into 3 temperature control tables to control the temperature, RKC (PID control) temperature control table is equipped with Shengang solid state relay heating, and K type thermocouple detects temperature.

Temperature range: uniformity ± 5 ° C, room temperature - 80 ° C adjustable, room temperature rise to 60 degrees takes about 10 minutes

Heating method: heating in upper and lower layers, medium and rear infrared heat pipes with reflectors, single-stage furnace cover heating power: 14KW

Transmission: 1HP Shengjie motor, 60 type 1:60 tooth box, easy energy frequency converter speed (0-3 meters adjustable)

Conveying mode: 5 points carbon steel chain, 25*25*2MM stainless steel square steel plus stainless steel yuan steel custom, each ball box put 4, 75 ball frames.

Safety device: over temperature protection device, power phase loss protector, thermal overload protection, other electrical appliances

Machine color: sanding chamfer without burr, anti-rust, gray-white high temperature spray

Power system: TNS/380V+N/30KW/50HZ (segmented control)

Specification typeSelected itemsProduct VideoDesign according to customer requirements

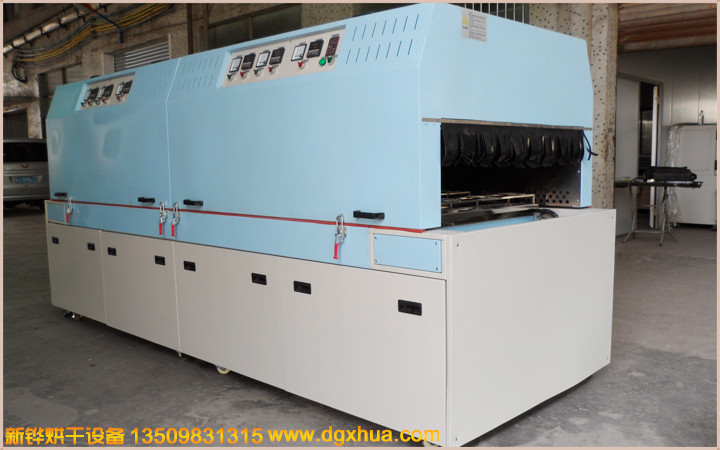

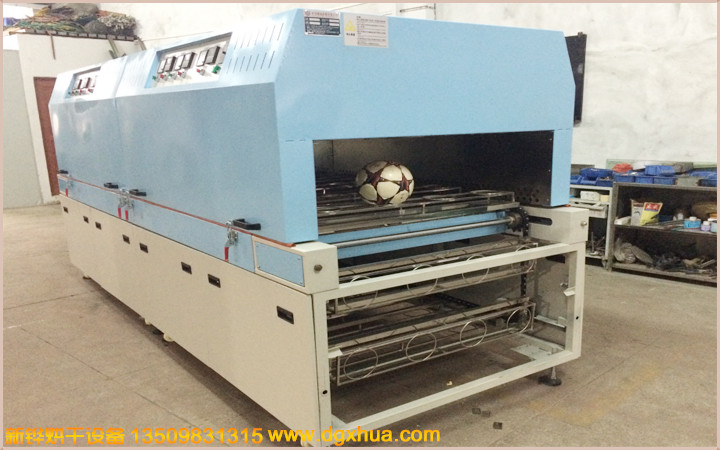

Football tunnel furnace customized according to customer specifications

Product introduction

Unique performance

Customer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend

Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control table		Japan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controller		Japan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorder		Imported multi-channel paper recorder
Import PARTLOW chart temperature recorder		Imported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 points		IR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inch		Proface
Mitsubishi		Siemens
Industrial computer Ethernet remote monitoring

Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend


Single side air supply type	Double-sided air supply type	Double-sided air supply explosion-proof	Heat radiation rising type

Four-sided radiation type	Thermal radiation type	Hot air radiation type	Hot air radiation type
