产品中心PRODUCT

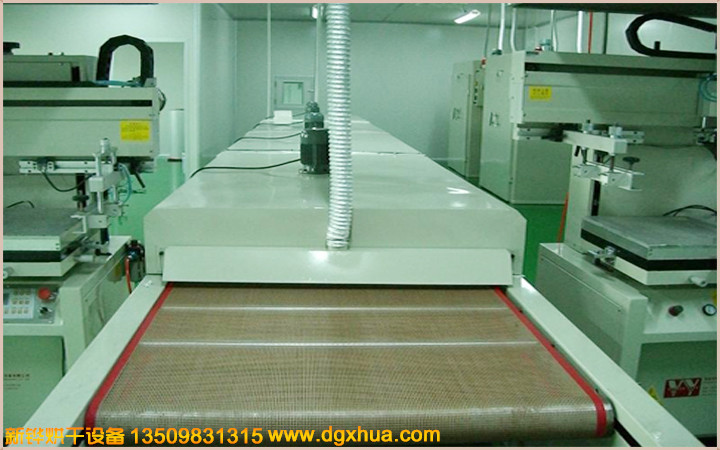

Glass dust tunnel furnacef
Product number:
Glass dust tunnel furnacef
Scope of application:
Screen printing pre-baking of silver paddle, main curing, OC pre-baking, glass cover, Film, membrane switch, light guide plate, etc.

Glass dust-free tunnel furnace specification

modelXHSOL-100-2IRXHSOL-100-4IRXHSOL-120-4IR

Inner dimension

L*W*H(mm)

2400*1000*508000*1050*5010000*1250*50
External dimensionsL*W*H(mm)3600*1050*165010000*1050*165012500*1450*1650
Feed inlet height(mm)0-50Conveying height(mm)850±50
Feed section length(mm)5008001000
Heating section length(mm)2*12004*20004*2500
Length of discharge section(mm)200400500
Length of discharge section(mm)5008001000
Conveying width(mm)100010001200
Delivery methodTeflon mesh belt, Teflon belt
temperature rangeRT-200℃ (250℃)  Evenness ±2.5%(No-load test)
Heating time30min35min40min
Box material

Inner box: SUS304#T1.5mm mirror stainless steel

Outer box: SS41#T1.5mm steel plate after anti-rust treatment, high-temperature baking powder

Air supply methodSingle-sided horizontal air supply/vertical air supply
heating methodSUS304# electric heater + hot air circulation, IR + hot air circulation
Cleanliness levelClass100~1000#
protective deviceLeakage switch, phase sequence protection, over temperature protection, motor overload protection, control line fuse
electric power AC380V 18KVAAC380V 48KVAAC380V 63KVA
Product Features

1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy.

2. Use two-stage four-way uniform for distributed control heating (when the temperature is constant, one of the electric heating pipes can be turned off arbitrarily, and the heating power is reduced to enter the power-saving mode)

3. The far-infrared electric heating tube is used for power saving, dust-free, and radiation heating from the inside to the outside, so that the product achieves the effect of rapid drying.

4. It adopts high temperature and high efficiency filter and is equipped with differential pressure gauge to show the working condition of filtration.


Specification typeSelected itemsProduct VideoDesign according to customer requirements

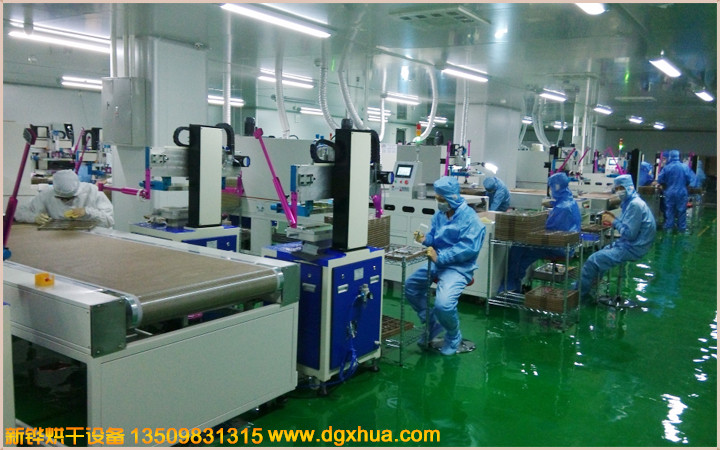

  Glass dust-free tunnel furnace can be customized



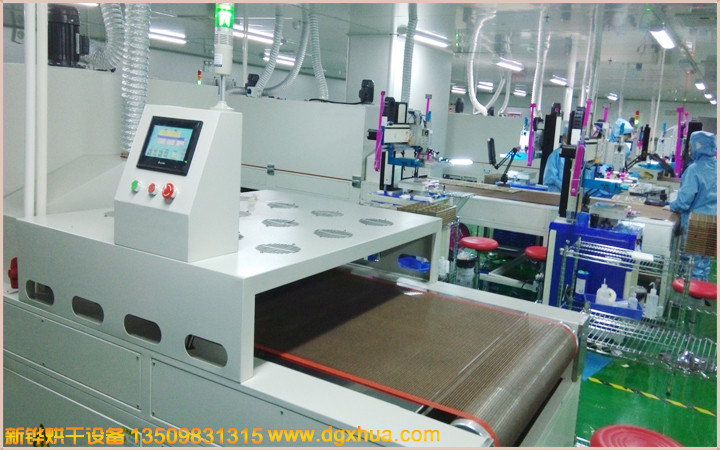

Product introduction
Unique performanceCustomer optional configuration

The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free;

Double over-temperature protection, safer and more reliable;

The internal hot air circulation, the baked objects are evenly heated;

Fast heating time, stable and accurate temperature;

Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect;

The temperature of the body shell is low, which has little effect on the indoor environment temperature;

A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly.

It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment.

Control systems, trays and carts can be selected according to customer needs.

Color selection legend


Customers can specify color according to the color card.

※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire.

Temperature control optional equipment

Thermostat (single segment / 8 segments - 256 segments programmable)
Taiwan Yudian temperature control tableJapan Omron intelligent temperature control table
Japan imported 256-segment programmable Omron temperature controllerJapan OMRON Thermostat
Logger
Imported multi-channel color screen paperless recorderImported multi-channel paper recorder
Import PARTLOW chart temperature recorderImported YOKOGAWA 48 channel temperature recorder
记录组
Portable Temperature Recorder Set 6 pointsIR computer temperature recorder set 6 to 12
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power output, according to SSR, SCR, SSPR and other power automatic regulator.

触摸屏+PLC
Weilun 7 inchProface
MitsubishiSiemens
Industrial computer Ethernet remote monitoring
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer.
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed.

Wind path cycle legend

Single side air supply typeDouble-sided air supply typeDouble-sided air supply explosion-proofHeat radiation rising type
Four-sided radiation typeThermal radiation typeHot air radiation typeHot air radiation type

Tray, cart matching project

Tray form




Punching plateScreen trayGrid disk
Activity cart




grillOven cart + trayChild cart
