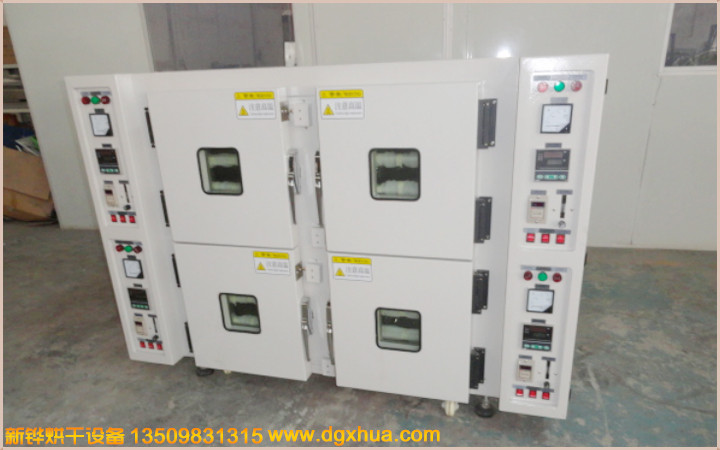

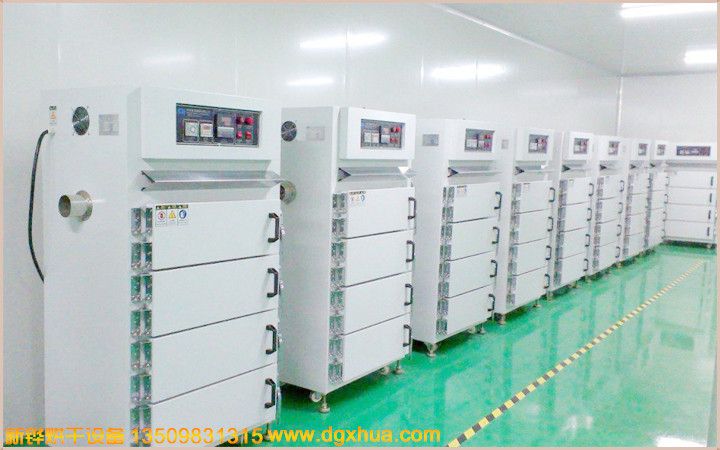

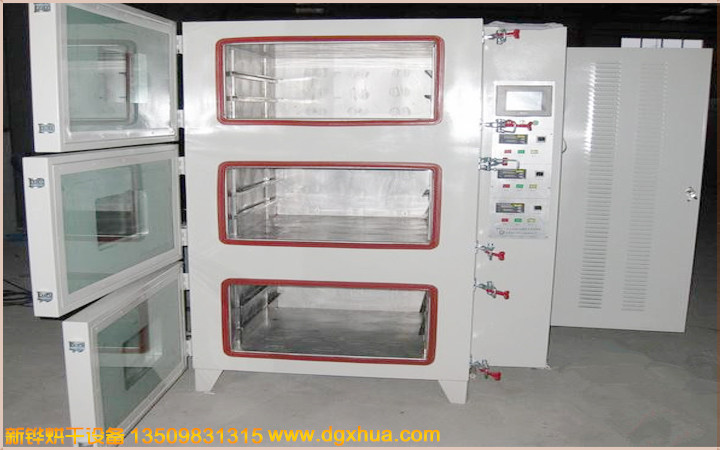

Semiconductor precision oven specification
Model XHMO-3D XHMO-4D
Inner size W*D*H(mm) 600*500*900 600*500*450
Outer size W*D*H(mm) 960*720*1580 1560*720*1000
Temperature range RT-200°C
Uniformity ±1.5% (no load test)
Heating time 15min 20min
Shelf 4 layers, adjustable shelf
Box material Inner box: SUS430# (SUS304#) mirror stainless steel; outer box: SS41# steel plate after anti-rust treatment, high-temperature powder baking powder
Air supply mode
Protection devices All electrical accessories such as leakage switch, phase sequence protection, over temperature protection, motor over current protection, control line fuse, etc. are all in accordance with national standards.
Electricity AC380V 9KVA AC380V 16KVA
Product Features
1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy.
2. Adopt automatic constant temperature, automatic timing, automatic shutdown after the arrival of baking time and alarm
3. The stainless steel electric heating tube saves electricity and is dust-free, so that the product can achieve the effect of rapid drying.
4. Design the oven air duct for product requirements to ensure the best temperature uniformity.
Semiconductor precision oven customization
| Unique performance | Customer optional configuration |
The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free; Double over-temperature protection, safer and more reliable; The internal hot air circulation, the baked objects are evenly heated; Fast heating time, stable and accurate temperature; Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect; The temperature of the body shell is low, which has little effect on the indoor environment temperature; A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly. | It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment. Control systems, trays and carts can be selected according to customer needs. Color selection legend
Customers can specify color according to the color card. |
| ※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire. | |
Temperature control optional equipment
| Thermostat (single segment / 8 segments - 256 segments programmable) | |||
| Taiwan Yudian temperature control table |  | Japan Omron intelligent temperature control table |  |
| Japan imported 256-segment programmable Omron temperature controller |  | Japan OMRON Thermostat |  |
| Logger | |||
| Imported multi-channel color screen paperless recorder |  | Imported multi-channel paper recorder |  |
| Import PARTLOW chart temperature recorder |  | Imported YOKOGAWA 48 channel temperature recorder |  |
| 记录组 | |||
| Portable Temperature Recorder Set 6 points |  | IR computer temperature recorder set 6 to 12 |  |
| Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. | |||
| Power output, according to SSR, SCR, SSPR and other power automatic regulator. | |||
| 触摸屏+PLC | |||
| Weilun 7 inch |  | Proface |  |
| Mitsubishi |  | Siemens |  |
| Industrial computer Ethernet remote monitoring | |||
 | |||
| Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. | |||
| Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed. | |||
Wind path cycle legend
 |  |  |  |
| Single side air supply type | Double-sided air supply type | Double-sided air supply explosion-proof | Heat radiation rising type |
 |  |  |  |
| Four-sided radiation type | Thermal radiation type | Hot air radiation type | Hot air radiation type |
Tray, cart matching project
| Tray form |
|
|
|
| Punching plate | Screen tray | Grid disk | |
| Activity cart |
|
|
|
| grill | Oven cart + tray | Child cart |
