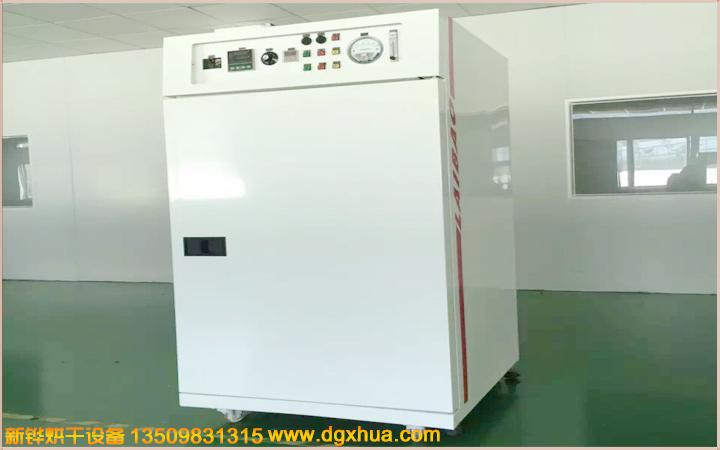

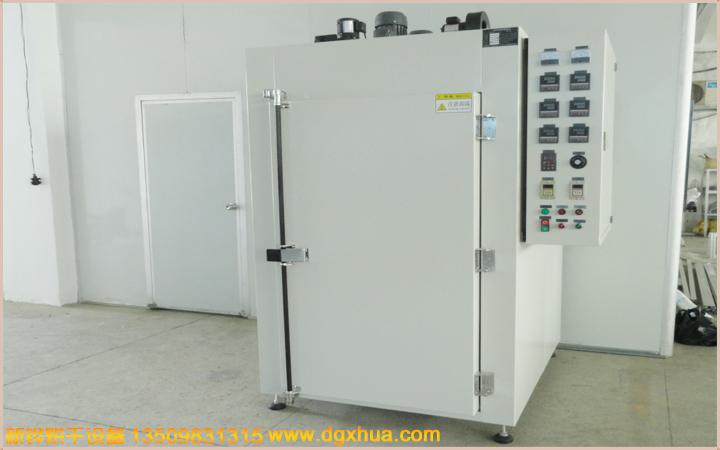

Electric blast drying oven

First, the characteristics of precision industrial oven:

1. High-precision temperature controllers provide precise, stable, constant temperature conditions for testing or drying.

2. The liquid-expanded over-temperature protection device ensures the safety of the test items.

3. With adjustable air inlet and exhaust port, you can choose to adjust the size or switch according to the test conditions.

4. Timing device, LED digital, constant timing, providing complete conditions of use.

5. The alarm device is notified when the over-temperature protection is activated, and automatically stops when the timing is completed.

Second, the air supply method:

The axial flow wind wheel is forced to supply air circulation, and the air is fed back and forth to ensure uniform temperature, and does not cause direct high temperature damage to the human body when opening the door.

Third, the precision industrial oven technical parameters:

1. Temperature range: RT+10°C～300°C

2. Temperature resolution: 1.0

3. Temperature fluctuation: ±2.0 °C

4. Temperature distribution mean: ±2.0% °C (tested after 30M at no load)

5. Inner box size: 1000*1000*1000MM (W*H*D)

6. Heating time (refers to no load): RT ~ 300 °C takes about 40min

7. Control mode: PID automatic adjustment output

Fourth, precision industrial oven structure and configuration:

1. Inner box material: 304 stainless steel

2. Outer box material: special steel plate, galvanized anti-rust treatment, with advanced wear-resistant resin paint coating

3. Insulation material: aluminum silicate glass wool

4. Heater material: stainless steel heating wire

5. Time control: 0~999H/M/S can be adjusted freely.

6. Temperature measuring body: K type thermocouple

7. Tight: Iron Ferry
