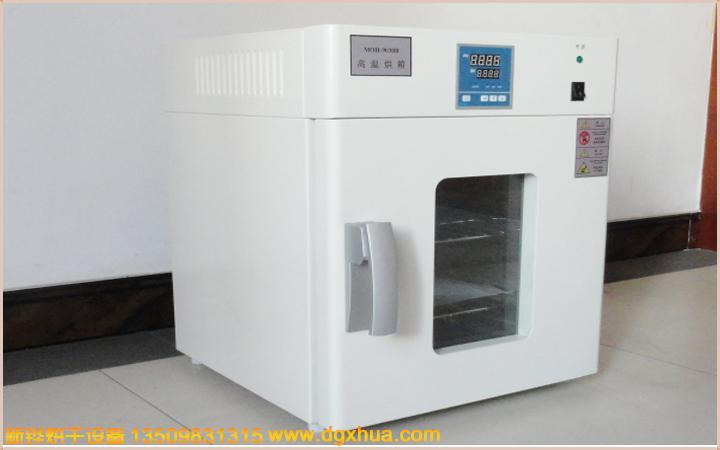

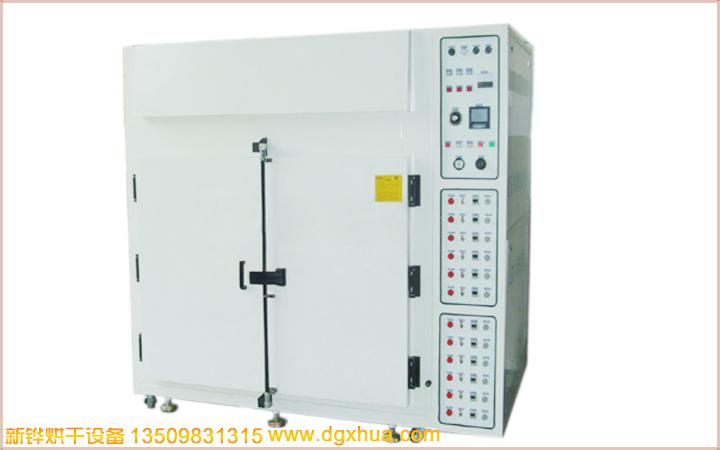

Precision industrial oven high temperature aging test chamber

The equipment consists of a furnace body, electric heating elements, furnace doors, temperature and electrical control systems.

1. Furnace body: The outer layer of the furnace is welded by high-quality steel plate and section steel. It should have sufficient strength to ensure the stability and non-deformation of the equipment. The outer surface is coated with protective primer and topcoat. The color of the topcoat is computer white to ensure the surface. Beautiful. The inner layer of the furnace is made of heat-resistant stainless steel. The lining is composed of aluminum silicate refractory fiber, which has good heat preservation performance and achieves energy saving effect.

2, electric heating components: stainless steel electric heating tube, resistance wire Cr20NI80. The heater is reasonable to ensure the uniformity of the furnace temperature. The circulating fan has a large air volume and low noise is a centrifugal fan, which ensures the uniformity of the furnace temperature. Linkage with the heater for longer life.

3. Air deflector: welded with heat-resistant stainless steel plate. The temperature of the surface of the electric heating tube in the chamber is uniformly blown into the working chamber through the air deflector, and the hot air in the working chamber is then introduced into the air passage through the air inlet of the fan, and then heated into the working chamber, so that the reciprocating is mandatory. Loop work. During the circulating heating operation, the flue gas and the hot humid air are discharged outside the furnace through the exhaust port at the top of the oven.

4. Temperature and electrical control: It adopts high-precision digital display temperature controller to automatically control temperature, and has PID self-tuning function to achieve power optimization, small temperature fluctuation and no interference to the power grid. Instrument control

Temperature accuracy ± 1 ° C. It has an over-temperature sound and light alarm, and forcibly cuts off the power supply to stop heating.
