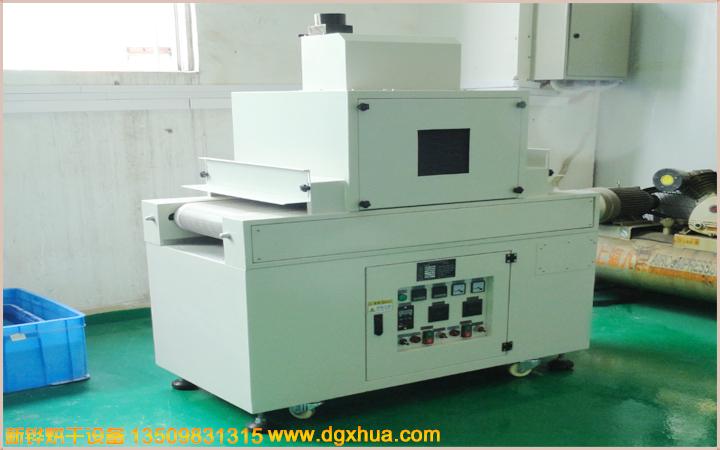

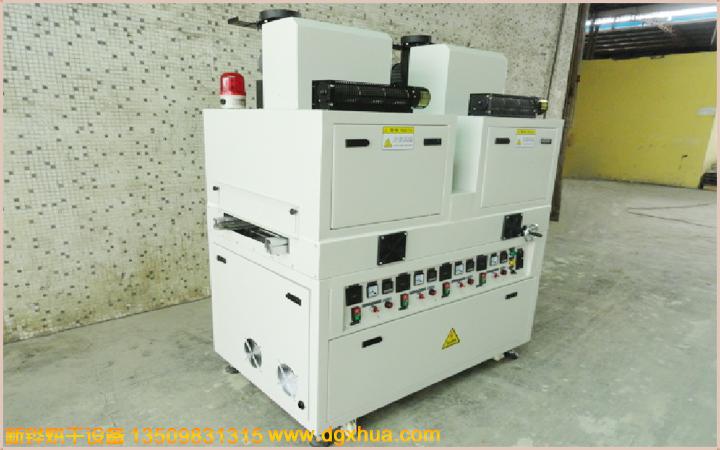

Main parameters of box UV curing machine

箱式UV固化机主要参数

■technical parameter:

Power requirements: three-phase five-wire 380VAC (power frequency AC) 50HZ (Hz)

Machine power: about 17KW (kW)

Dimensions: 2500L (length) × 800W (width) × 1740H (height) mm

Conveying speed: 0.5-5 m/min (m/min)

Conveying width: 600mm (mm)

Import height: 50-140mm

Exit height: 50-140mm

Imported material area: 700mm

Export material area: 700mm

Shading area: into 250mm

Shading area: into 250mm

Height from the ground: the height of the mesh belt is 750mm

Mesh belt material: UV special Teflon mesh belt

Cooling method: forced air cooling, with flat coated cold mirror

Light source type: high pressure Hg mercury lamp

Light line power: 100w/cm

Light source configuration: 2, 8KW high pressure mercury lamp.

Light source life: according to the accelerated equivalent test, the average is greater than 800 (h) hours, the light decay is not less than 80%

Main peak wavelength: 365nm (nanometer)

Power regulation: 75% 100% full power

Typical features: two sets of UV light source configuration, strong optional

Typical application: adapt to non-explosion-proof environment
