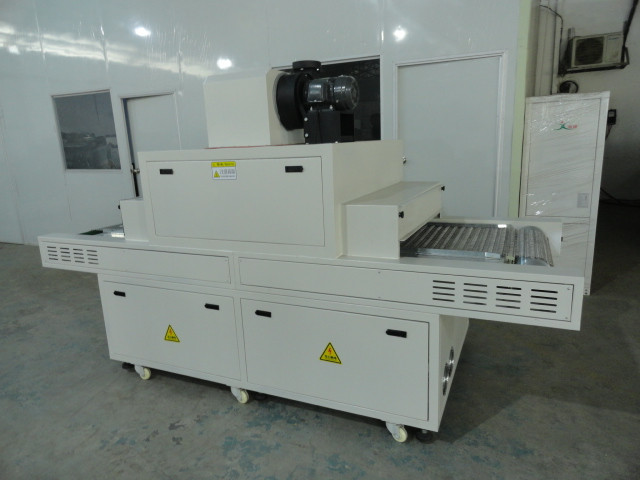

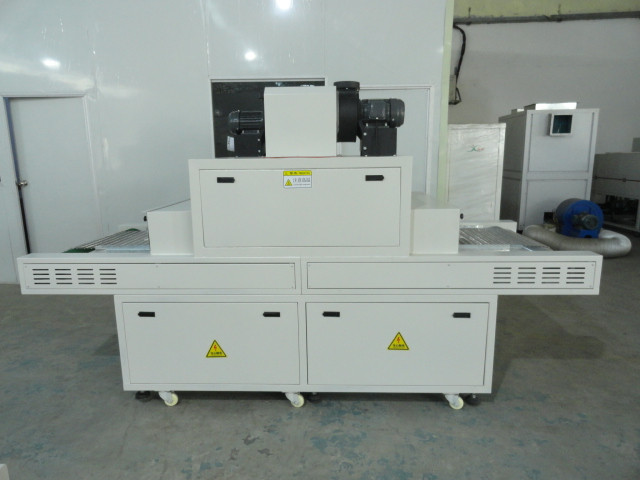

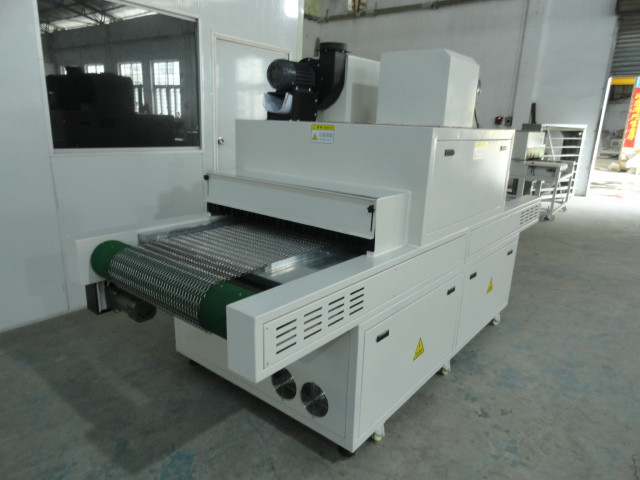

UV curing machine specification reference
Model XHUV-202 XHUV-302
Outer size L*W*H(mm) 1200*510*1200 2000*800*1260
Lamp power (KW) 2*2KW 2*3KW
Lamp strength (W/m2) 60/80 60/80
Effective illumination width 150/250mm 400mm
Feeding port height (mm) 0-150 conveying height: 850±50mm
Conveying speed 3~12m/min
Conveyor belt Teflon mesh belt, stainless steel mesh belt
Conveying width 180mm 470mm
Box material SS41# steel plate after anti-rust treatment, high-temperature powder baking powder
Cooling method forced air cooling
Protection device leakage switch, phase sequence protection, motor over current protection, control line fuse
Electricity AC380V 5KVA AC380V 7KVA
Other options Cold mirror-CM, cold plate-CF, stepless variable frequency power supply
UV curing machine customized according to customer specifications
Unique performance | Customer optional configuration |
The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free; Double over-temperature protection, safer and more reliable; The internal hot air circulation, the baked objects are evenly heated; Fast heating time, stable and accurate temperature; Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect; The temperature of the body shell is low, which has little effect on the indoor environment temperature; A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly. | It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment. Control systems, trays and carts can be selected according to customer needs. Color selection legend Customers can specify color according to the color card. |
※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire. |
Temperature control optional equipment
Thermostat (single segment / 8 segments - 256 segments programmable) | |||
Taiwan Yudian temperature control table | Japan Omron intelligent temperature control table | ||
Japan imported 256-segment programmable Omron temperature controller | Japan OMRON Thermostat | ||
Logger | |||
Imported multi-channel color screen paperless recorder | Imported multi-channel paper recorder | ||
Import PARTLOW chart temperature recorder | Imported YOKOGAWA 48 channel temperature recorder | ||
记录组 | |||
Portable Temperature Recorder Set 6 points | IR computer temperature recorder set 6 to 12 | ||
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. | |||
Power output, according to SSR, SCR, SSPR and other power automatic regulator. | |||
触摸屏+PLC | |||
Weilun 7 inch | Proface | ||
Mitsubishi | Siemens | ||
Industrial computer Ethernet remote monitoring | |||
Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. | |||
Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed. |
Wind path cycle legend
Single side air supply type | Double-sided air supply type | Double-sided air supply explosion-proof | Heat radiation rising type |
Four-sided radiation type | Thermal radiation type | Hot air radiation type | Hot air radiation type |
Tray, cart matching project
Tray form | |||
Punching plate | Screen tray | Grid disk | |
Activity cart | |||
grill | Oven cart + tray | Child cart |
