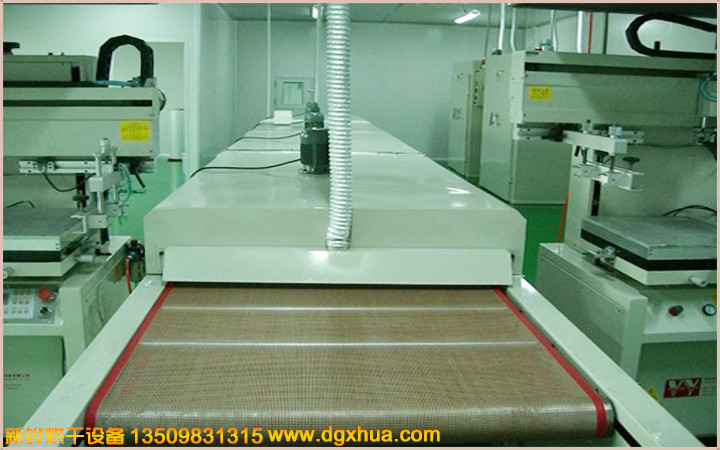

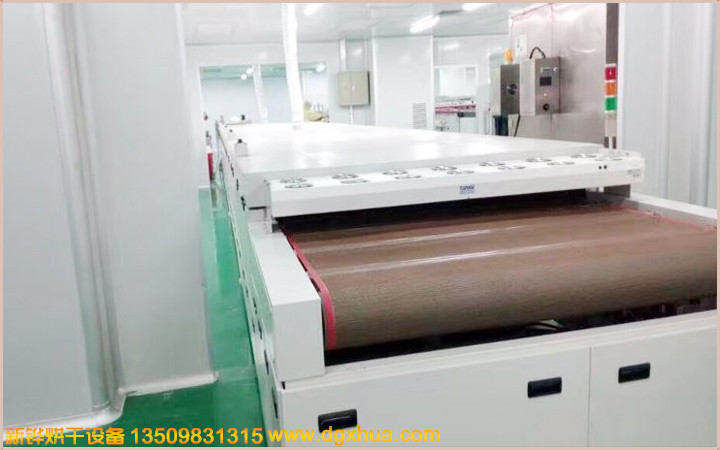

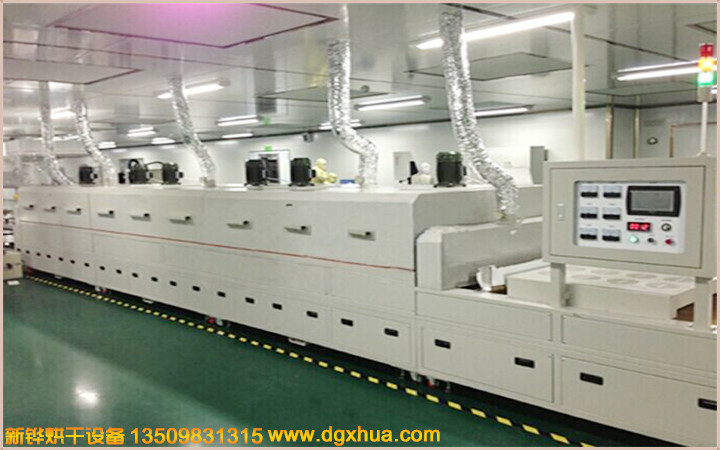

Silk screen dust-free tunnel furnace specification
Model XHSOL-100-2IR XHSOL-100-4IR XHSOL-120-4IR
Inner dimension L*W*H(mm) 2400*1000*50 8000*1050*50 10000*1250*50
Outer size L*W*H(mm) 3600*1050*1650 10000*1050*1650 12500*1450*1650
Feed port height (mm) 0-50 conveying height (mm) 850±50
Feed section length (mm) 500 800 1000
Heating section length (mm) 2*1200 4*2000 4*2500
Cooling section length (mm) 200 400 500
Discharge section length (mm) 500 800 1000
Conveying width (mm) 1000 1000 1200
Conveying method Teflon mesh belt, Teflon belt
Temperature range RT-200°C (250°C) Uniformity ±2.5% (no-load test)
Heating time 30min 35min 40min
Box material
Inner box: SUS304#T1.5mm mirror stainless steel
Outer box: SS41#T1.5mm steel plate after anti-rust treatment, high-temperature baking powder
Air supply mode Single side horizontal air supply / vertical air supply
Heating method SUS304# electric heater + hot air circulation, IR + hot air circulation
Cleanliness Class100~1000#
Protection device Leakage switch, phase sequence protection, over temperature protection, motor overload protection, control line fuse
Electricity AC380V 18KVA AC380V 48KVA AC380V 63KVA
Product characteristics
1. Adopt intelligent temperature controller, PID automatic calculation, LED display, with SSR solid state relay output control heating, high temperature control accuracy.
2. Use two-stage four-way uniform for distributed control heating (when the temperature is constant, one of the electric heating pipes can be turned off arbitrarily, and the heating power is reduced to enter the power-saving mode)
3. The far-infrared electric heating tube is used for power saving, dust-free, and radiation heating from the inside to the outside, so that the product achieves the effect of rapid drying.
4. It adopts high temperature and high efficiency filter and is equipped with differential pressure gauge to show the working condition of filtration.
Silk screen dust-free tunnel furnace can be customized
| Unique performance | Customer optional configuration |
The inner tank is fully welded with stainless steel argon arc welding to prevent the machine itself from generating dust; the interior is clean and dust-free; Double over-temperature protection, safer and more reliable; The internal hot air circulation, the baked objects are evenly heated; Fast heating time, stable and accurate temperature; Domestic first-class heat insulation, heat insulation and insulation technology, excellent sealing effect; The temperature of the body shell is low, which has little effect on the indoor environment temperature; A variety of heating and transport wind according to product settings; energy saving, safe and environmentally friendly. | It can be protected by a nitrogen-filled atmosphere to achieve an oxidation-free baking environment. Control systems, trays and carts can be selected according to customer needs. Color selection legend
Customers can specify color according to the color card. |
| ※According to different baking trays/trailers, the materials are painted, electroplated zinc, stainless steel, etc. The size and specifications can be customized. Welcome to inquire. | |
Temperature control optional equipment
| Thermostat (single segment / 8 segments - 256 segments programmable) | |||
| Taiwan Yudian temperature control table |  | Japan Omron intelligent temperature control table |  |
| Japan imported 256-segment programmable Omron temperature controller |  | Japan OMRON Thermostat |  |
| Logger | |||
| Imported multi-channel color screen paperless recorder |  | Imported multi-channel paper recorder |  |
| Import PARTLOW chart temperature recorder |  | Imported YOKOGAWA 48 channel temperature recorder |  |
| 记录组 | |||
| Portable Temperature Recorder Set 6 points |  | IR computer temperature recorder set 6 to 12 |  |
| Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. | |||
| Power output, according to SSR, SCR, SSPR and other power automatic regulator. | |||
| 触摸屏+PLC | |||
| Weilun 7 inch |  | Proface |  |
| Mitsubishi |  | Siemens |  |
| Industrial computer Ethernet remote monitoring | |||
 | |||
| Timer 30 minutes, 999 points (standard equipment), 24H, 99H, year and month programmable timer. | |||
| Power Output An automatic power regulator such as SSR, SCR, SSPR can be installed. | |||
Wind path cycle legend
 |  |  |  |
| Single side air supply type | Double-sided air supply type | Double-sided air supply explosion-proof | Heat radiation rising type |
 |  |  |  |
| Four-sided radiation type | Thermal radiation type | Hot air radiation type | Hot air radiation type |
Tray, cart matching project
| Tray form |
|
|
|
| Punching plate | Screen tray | Grid disk | |
| Activity cart |
|
|
|
| grill | Oven cart + tray | Child cart |
